可选配镜头专用存储箱

Dimensions in mm / inch: (W) 415 / 16.34” x (H) 465 / 18.31” x (D) 190 / 7.48”

Weight: 3,25 kg / 7.16 lbs, transport case for inspection cameras INVIZ Revolver 80 / INVIZ SNK.

可选配线缆存储软布包

Accessory soft pack including standard main cable soft bag (up to 50 meter / 164 ft.)

可选配专用线缆卷轴

Allows to wind and unwind cable during operation up to 200 m (640 ft.) cable.

可选配小型对中环

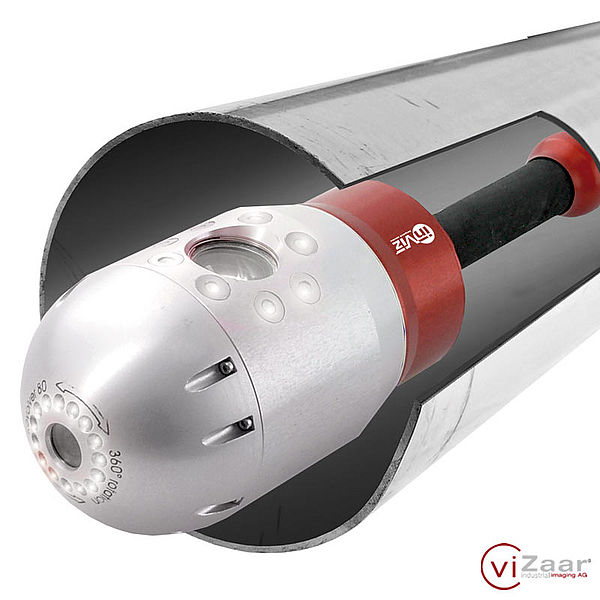

Centring ring material and shape are creating minimal friction when pushing the camera inside a pipe. Camera head in central position, allowing fast orbital inspection. Recommended pipe dimensions: 100 mm (3.94“) to 200 mm (7.87“). Material POM.

可选配中型对中器

Centring tool is used inside medium size pipes. Adjustment range: 140 mm (5.51“) to 210 mm (8.27“). Keeps the camera off the ground and eases inspection when centred. Construction: aluminium. Recommended pipe dimensions: 145 mm (5.70“), to 400 mm (15.74“).

可选配大型对中器

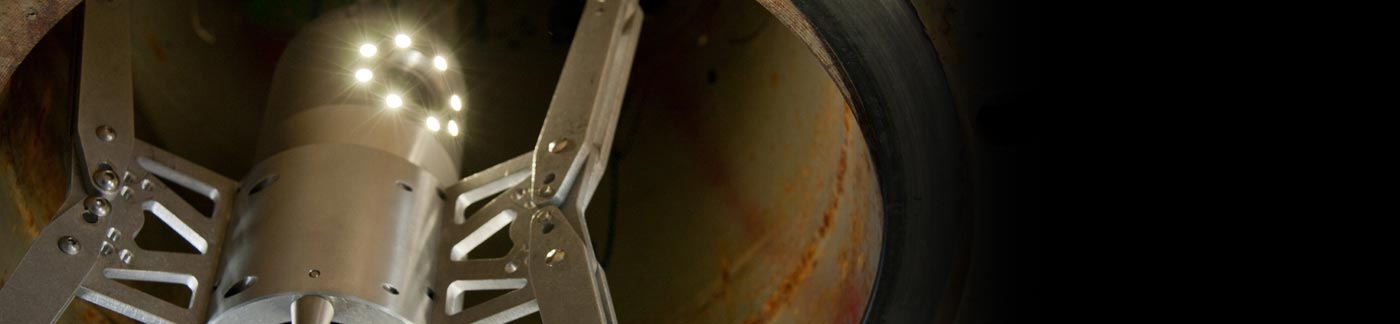

Used with camera head inside big size pipes. Adjustment range: 225 mm (8.86“) to 540 mm (21.25“). Positions camera in the centre of the pipe. Six plastic wheels ease operation & friction. Recommended pipe dimensions: 230 mm (9.05“) to 1.000 mm (39.37“). Construction: aluminium

可选配快速组装推送器

For mounting and guiding of the camera head in the application. Push poles available in 1 m / 3.28 ft. and 2 m / 6.56 ft. length. The Soft bag allows easy transportation of over 10 push poles.
